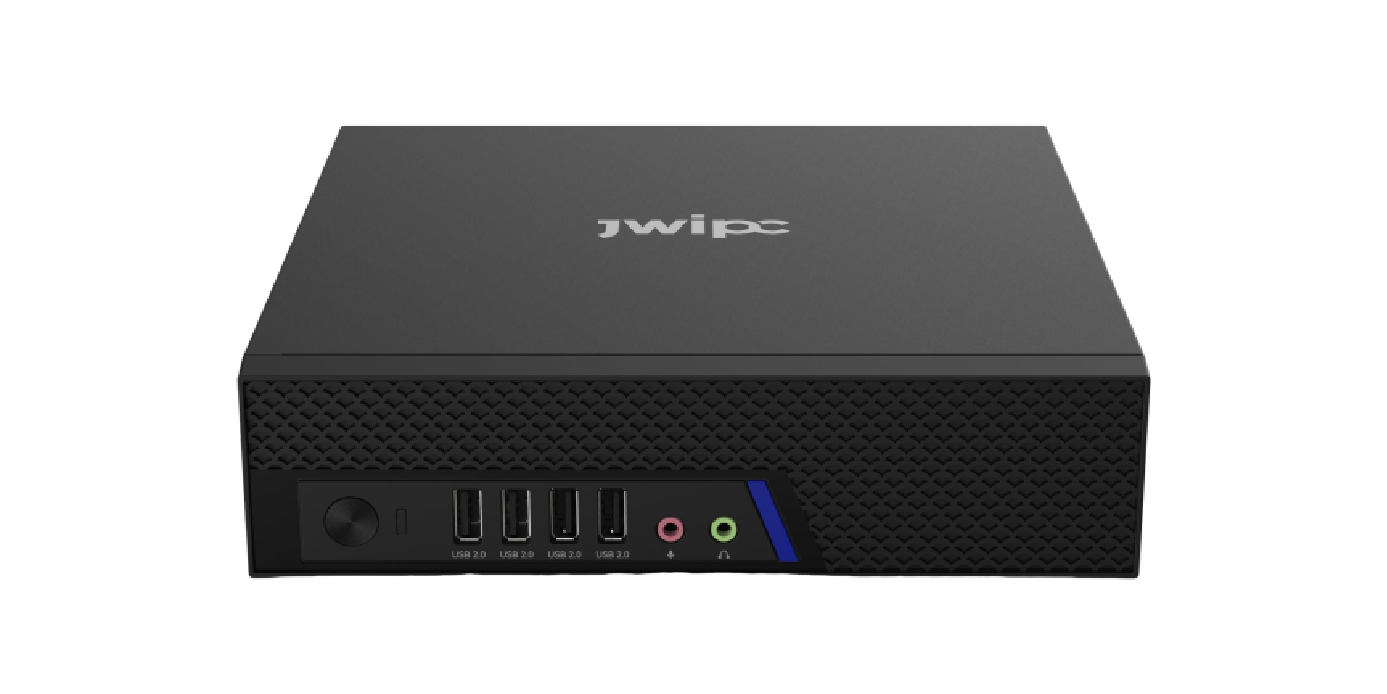

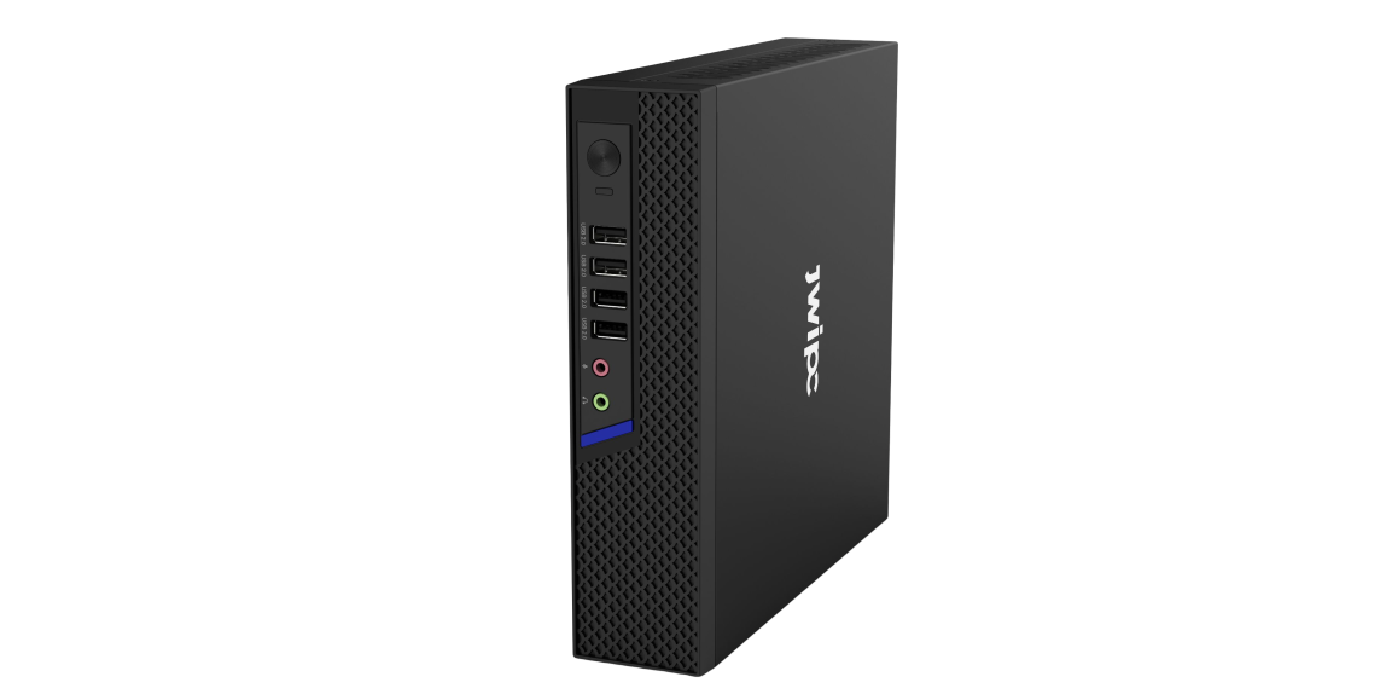

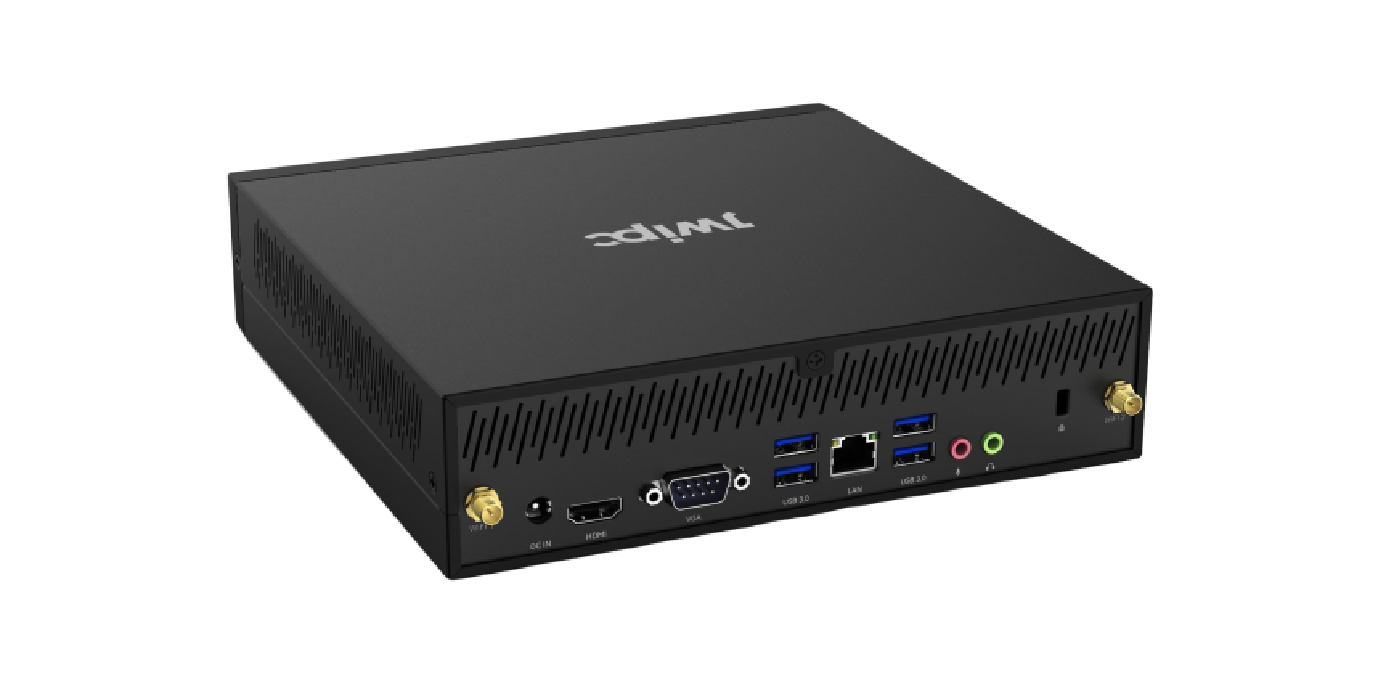

L112

X86 IDV云终端

采用Intel 13th酷睿系列处理器，具备丰富的扩展接口，广泛应用教育、政务、医疗、金融等行业

留言咨询业务咨询

规格参数

CPU	CPU	Intel® 13th Gen (Raptor Lake S) Core™ Processors
CPU	TDP	Up to 65W
Display	Graphic card	Intel® UHD Graphics 730 for I3/I5 CPU Intel® UHD Graphics 770 for I7 CPU
	Multi displays	Support 2 Displays
	Interface	1 x HDMI-Out, 1 x VGA
Network	Lan IC	1 x Realtek Lan IC
	Lan Interface	1.0Gbps
	Lan Connector	1 x RJ45 Ports
	Wireless Type	WIFI5 or WIFI6
	Wireless Interface	M.2 2230 Key E With PCIe,USB2.0 and CNVi
	4G/5G	N/A
I/O interface	Serial Port	N/A
	USB	4 x USB3.0，4 x USB2.0
	Button	1 x PowerButton, 1 x Clear CMOS Key
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Line Out 1 x 3.5mm Mic In
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	2 x SODIMM DDR4 3200Mhz，Max 64GB
	Storage	1 x M.2 Key M 2280 for NVME/SATA SSD
	OS	Windows 11/Linux
	WatchDog	Support
	Auto Power On	Support
	RTC	Power on at specific time everyday
	Power Input	19v DC-In (2.5/5.5 DC Jack)
	Dimension	206mm(L) x 206mm(W) x 51mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
